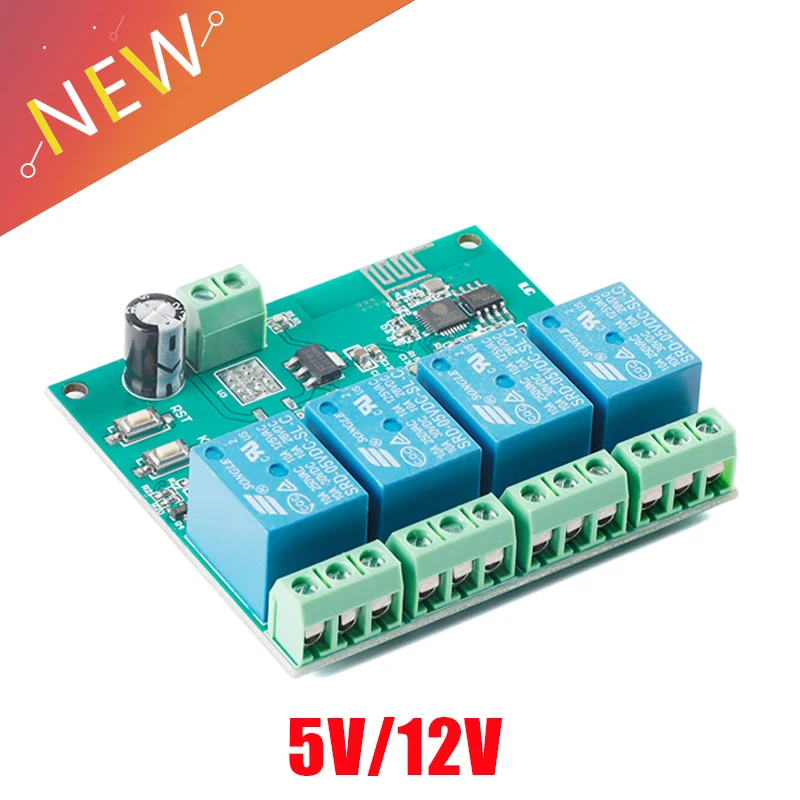

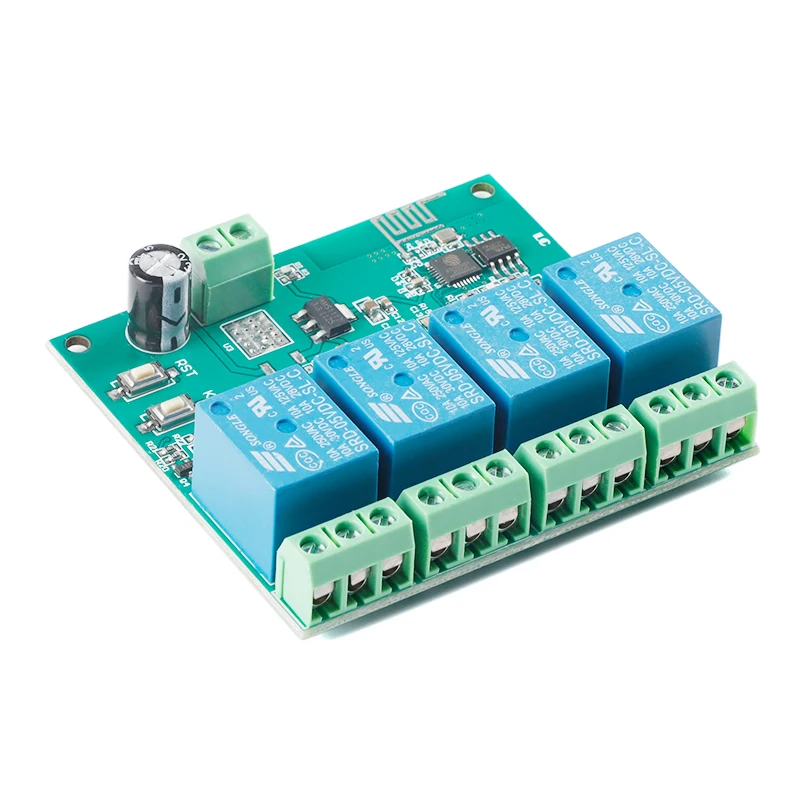

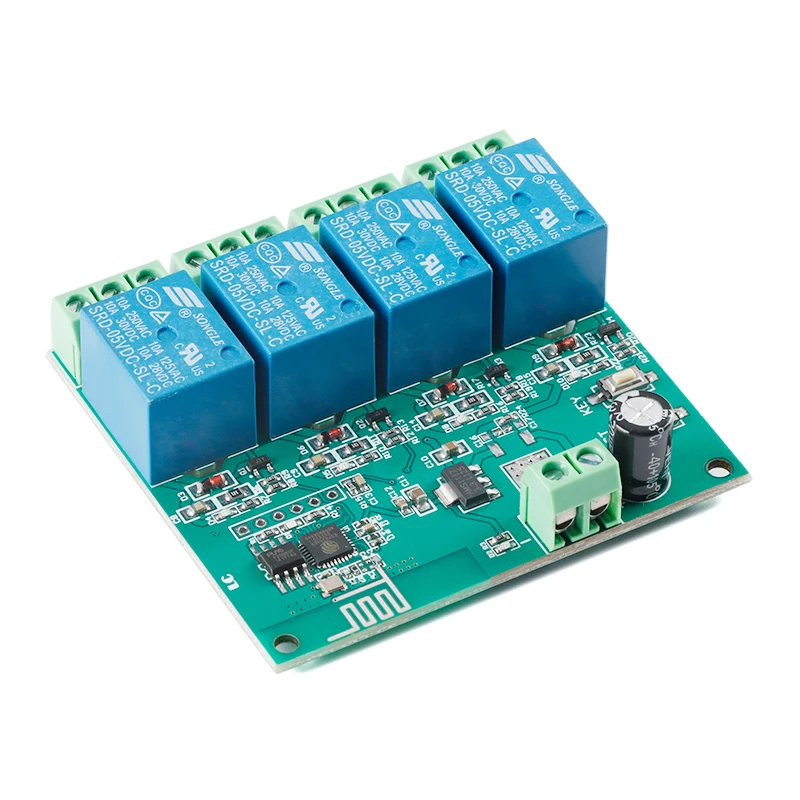

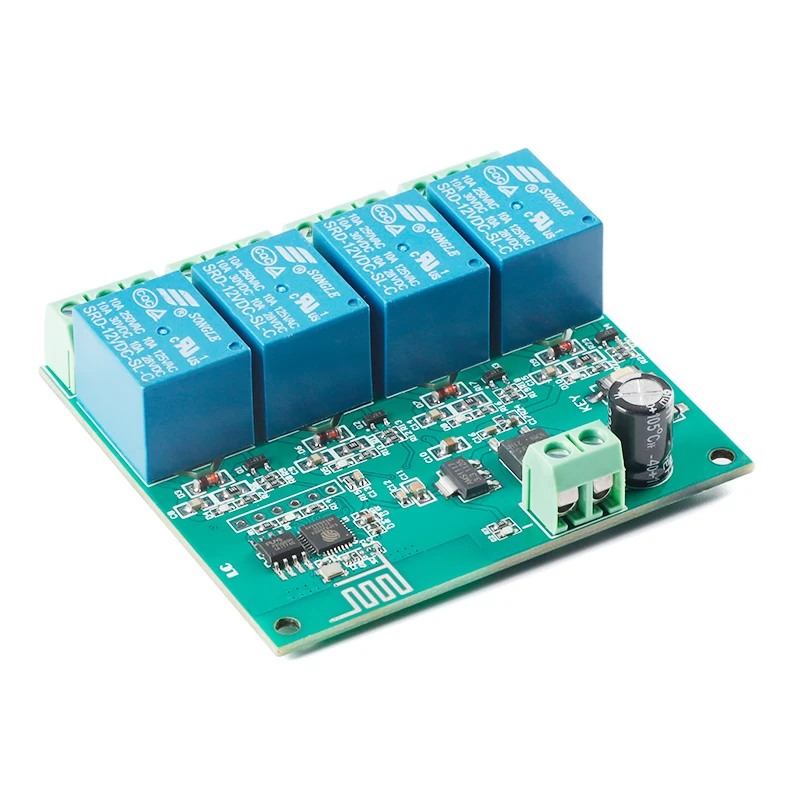

ESP8266 DC 12/5V 4 Channel Relay Board Module WIFI Relay Module For IOT Smart Home Phone APP Controller WIFI Relay Module

ESP8266 DC 12/5V 4 Channel Relay Board Module WIFI Relay Module For IOT Smart Home Phone APP Controller WIFI Relay Module

Features

1: Widely used

2: Stable performance

3: Realize mobile phone moneyless control to control open days anytime, anywhere

4: In an open environment, when the mobile phone is mounted on the ESP8266 chip, the maximum stable transmission distance is 100m;

5: The operation is simple and easy to understand

5V 12V ESP8266 Quad WIFI

The relay module uses the ESP8266 chip, only a simple configuration process can realize the wireless control of 4 relays in the local area network using the mobile phone APP.

Product Features:

1. Onboard ESP8266 chip

2. The module has 2 working modes:

Mode 1: The mobile phone is directly mounted on the ESP8266 chip;

Mode 2: The mobile phone and the ESP8266 chip are carried on the router at the same time;

3. Transmission distance:

(1) In an open environment, when the mobile phone is mounted on the ESP8266 chip, the maximum stable transmission distance is 100M,

(2) When the ESP8266 chip and the mobile phone are mounted on the router at the same time, the transmission distance depends on the signal strength of the router.

4. Use Smartconfig technology to complete the configuration of the ESP8266 chip account and password on the mobile APP. The configured account and password have the power-off memory function;

5. Onboard 5V, 10A/250V AC10A/30V DC relays, which can be activated continuously for 100,000 times, have diode effusion protection, and have a short response time

6. On-board mode selection indicator;

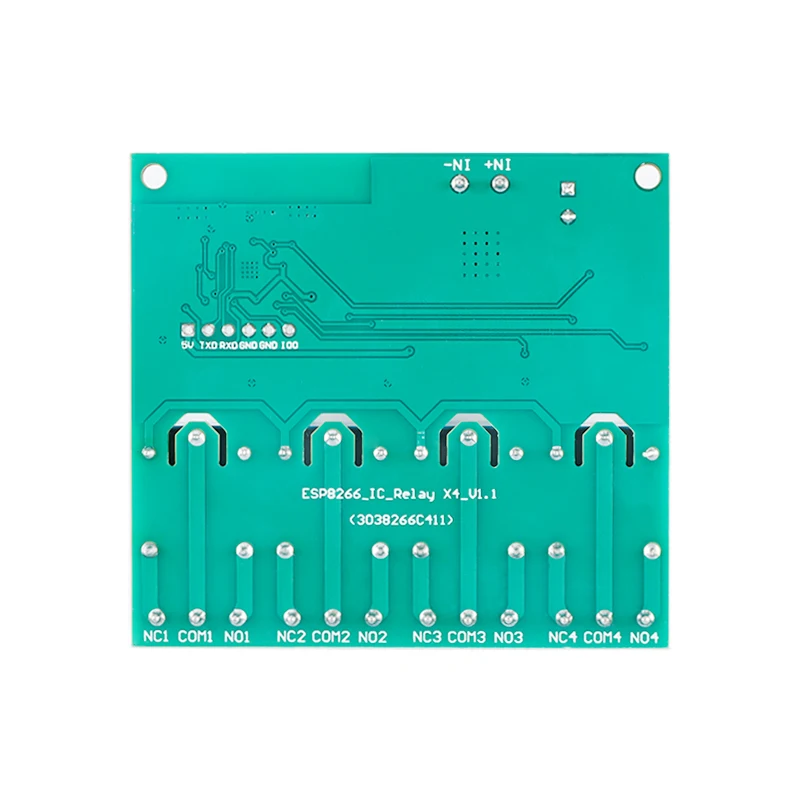

7. Reserve the ESP8266 chip program download interface.

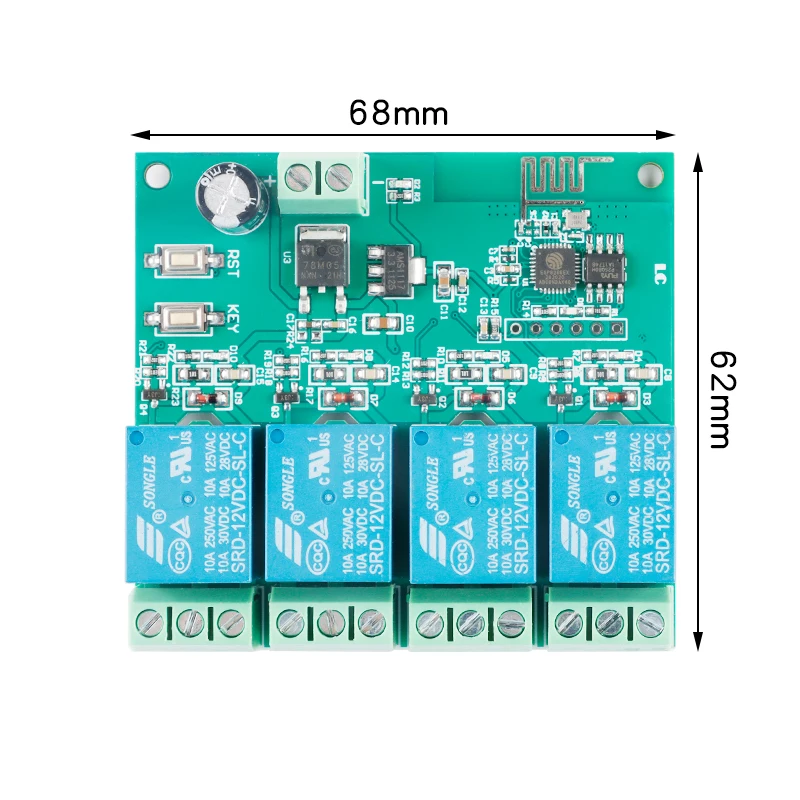

8. Board size: 6.8*62.4mm weight: 52g

List:

1*relay module
