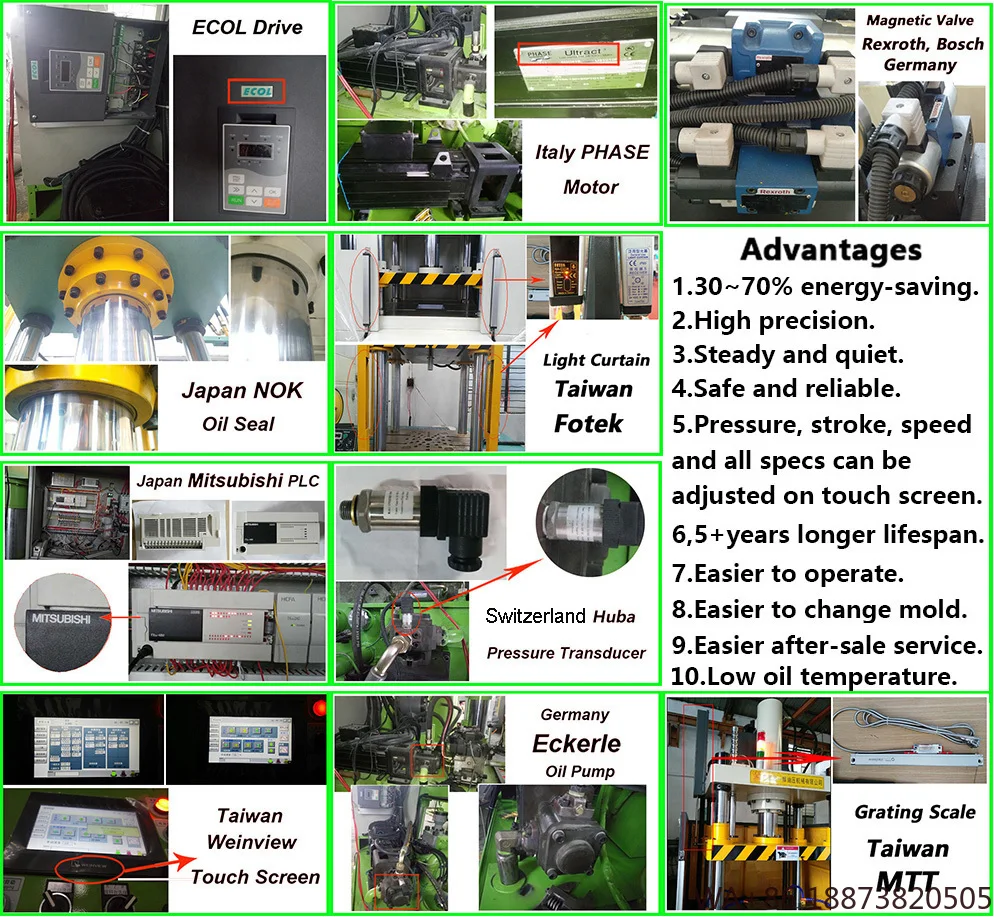

YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:
1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
Why Choose Us
YIHUI Hydraulic press with servo system,can bring you 10 kinds Advantages as below:
1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% – 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
Products Description

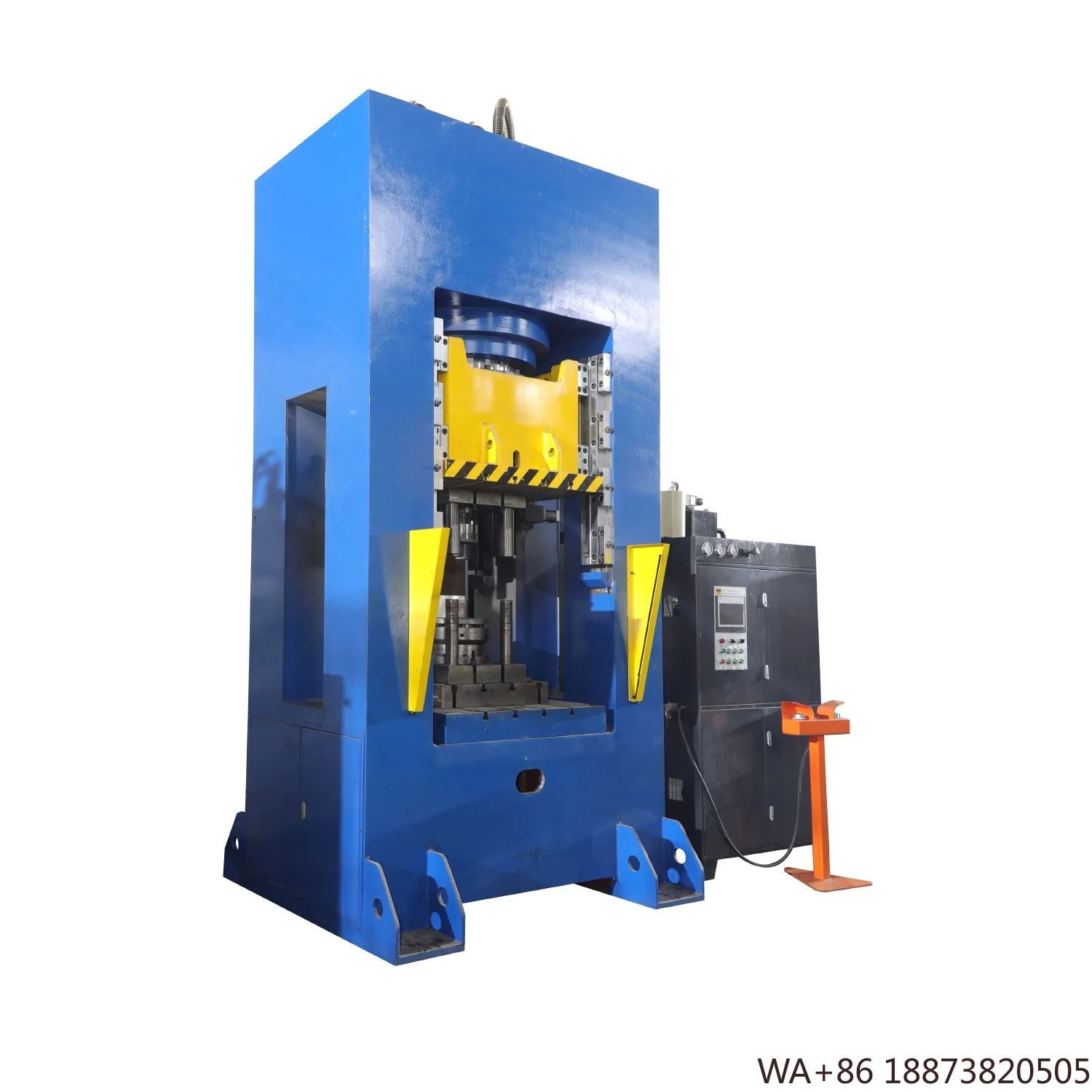

Hot Forging Press
Product Application
1. Mainly applies tometalmaterials,cold forging,warm forging and extrusion molding,and punching mark,ligh stretching,cut edges and
other materials.Such as cars,motorcycles,bicycles,cell phone case,LED radiator, watchcase,hardware tools;
2. Especially suitable for the precision molding parts.
other materials.Such as cars,motorcycles,bicycles,cell phone case,LED radiator, watchcase,hardware tools;
2. Especially suitable for the precision molding parts.
|
Ltem
|
|
Unit
|
Product Specifications
|
|
|
|
|
|||||||
|
|
|
|
YHL3-300TS
|
YHL3-500TS
|
YHL3-800TS
|
YHL3-1000TS
|
YHL3-1500TS
|
|||||||
|
Main cylinder force
|
|
kN
|
3000
|
5000
|
8000
|
10000
|
15000
|
|||||||
|
Max.Stroke of ram
|
|
mm
|
400
|
400
|
500
|
500
|
500
|
|||||||
|
Max.Open height
|
|
mm
|
700
|
900
|
1200
|
1200
|
1500
|
|||||||
|
Ejection capacity
|
|
kN
|
30
|
30
|
30
|
30
|
30
|
|||||||
|
Max.Stroke of ejection
|
|
mm
|
50
|
50
|
50
|
50
|
50
|
|||||||
|
Lower cyinder nominal force
|
|
kN
|
300
|
400
|
500
|
600
|
1000
|
|||||||
|
Max.stroke of cushion piston
|
|
mm
|
200
|
200
|
200
|
200
|
200
|
|||||||
|
Speed of ram
|
Down no load
|
mm/s
|
260
|
230
|
190
|
190
|
190
|
|||||||
|
|
Pressing
|
mm/s
|
2/15
|
2/13
|
2/10
|
2/10
|
2/10
|
|||||||
|
|
Return
|
mm/s
|
230
|
220
|
180
|
180
|
180
|
|||||||
|
Effective area of working table
|
RL(edge)
|
mm
|
650
|
750
|
1000
|
1200
|
1500
|
|||||||
|
|
FB(edge)
|
mm
|
700
|
800
|
1060
|
1400
|
1500
|
|||||||
|
Overall dimension
|
L.R
|
mm
|
1390
|
1780
|
2960
|
3200
|
3700
|
|||||||
|
|
F.B
|
mm
|
1580
|
1870
|
2300
|
2500
|
2800
|
|||||||
|
|
H
|
mm
|
3250
|
3700
|
4400
|
4900
|
5600
|
|||||||
|
Motor power
|
|
kW
|
16.4
|
24.5
|
31
|
49.6
|
31*2
|
|||||||
|
Total weight
|
|
kg
|
8500
|
12000
|
21000
|
25000
|
33000
|
|||||||
|
Oil quantity(Approx)
|
|
L
|
600
|
800
|
1000
|
1300
|
1500
|
|||||||
|
Note:
Parameters are for reference only, parameters will be updated without notice, the specific parameters have been order drawings shall prevail.Inquiries can be initiated to learn more.
|
|
|
|
|
|
|
|
|||||||
Product Paramenters

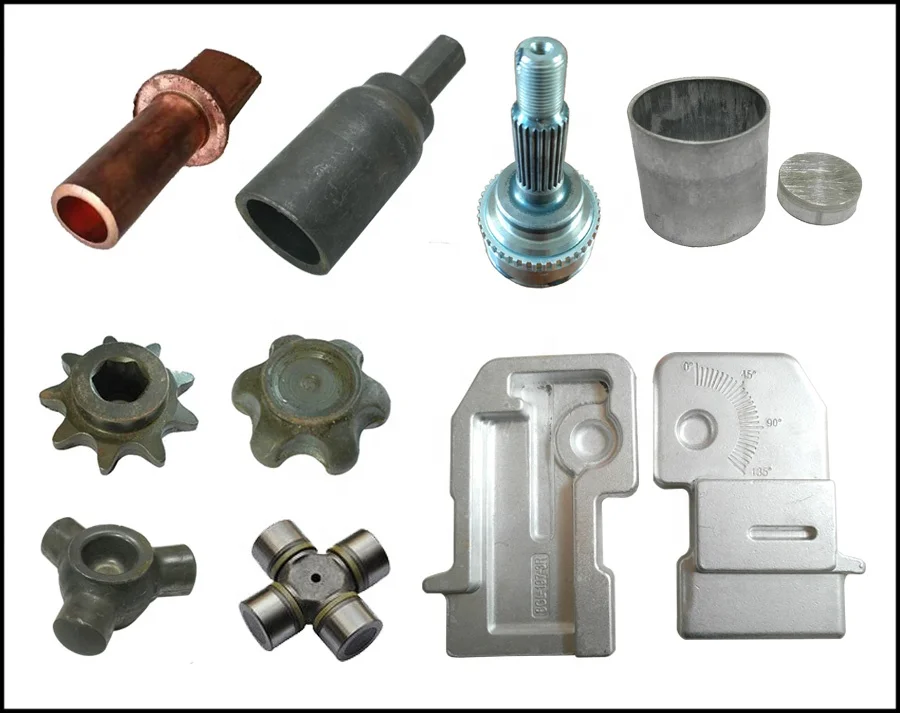

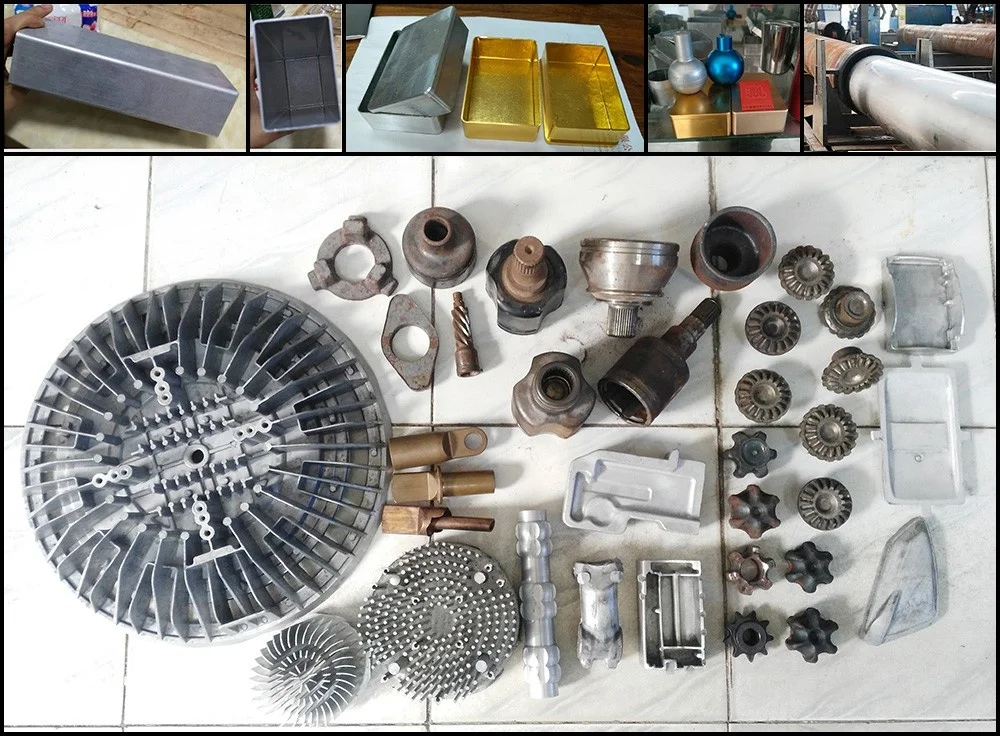

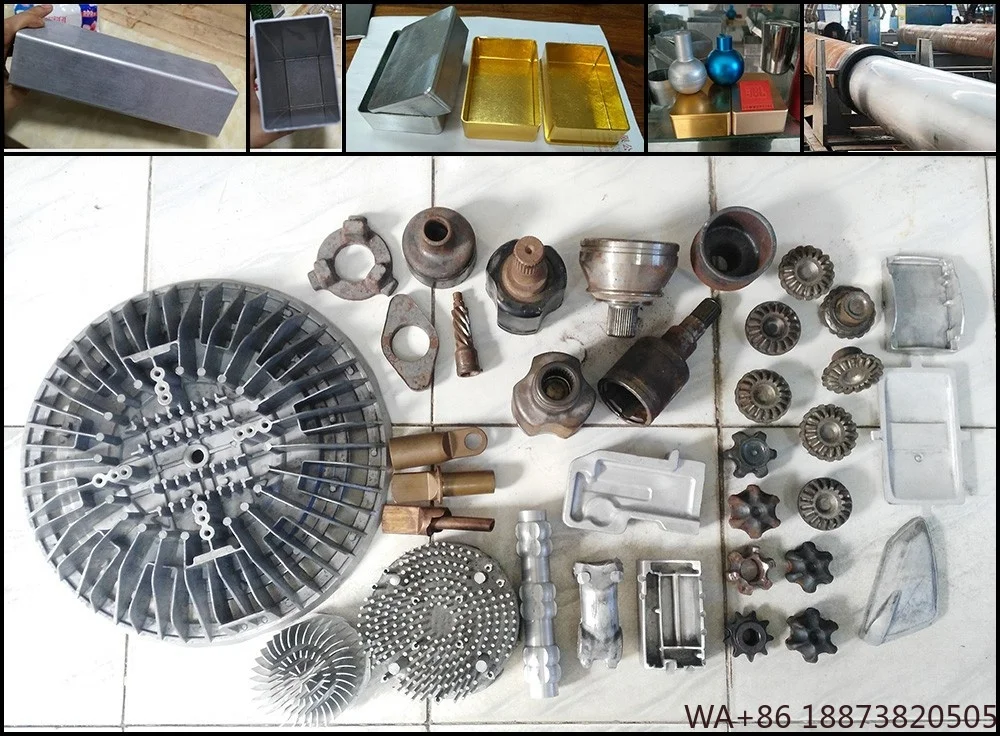

Sample Product

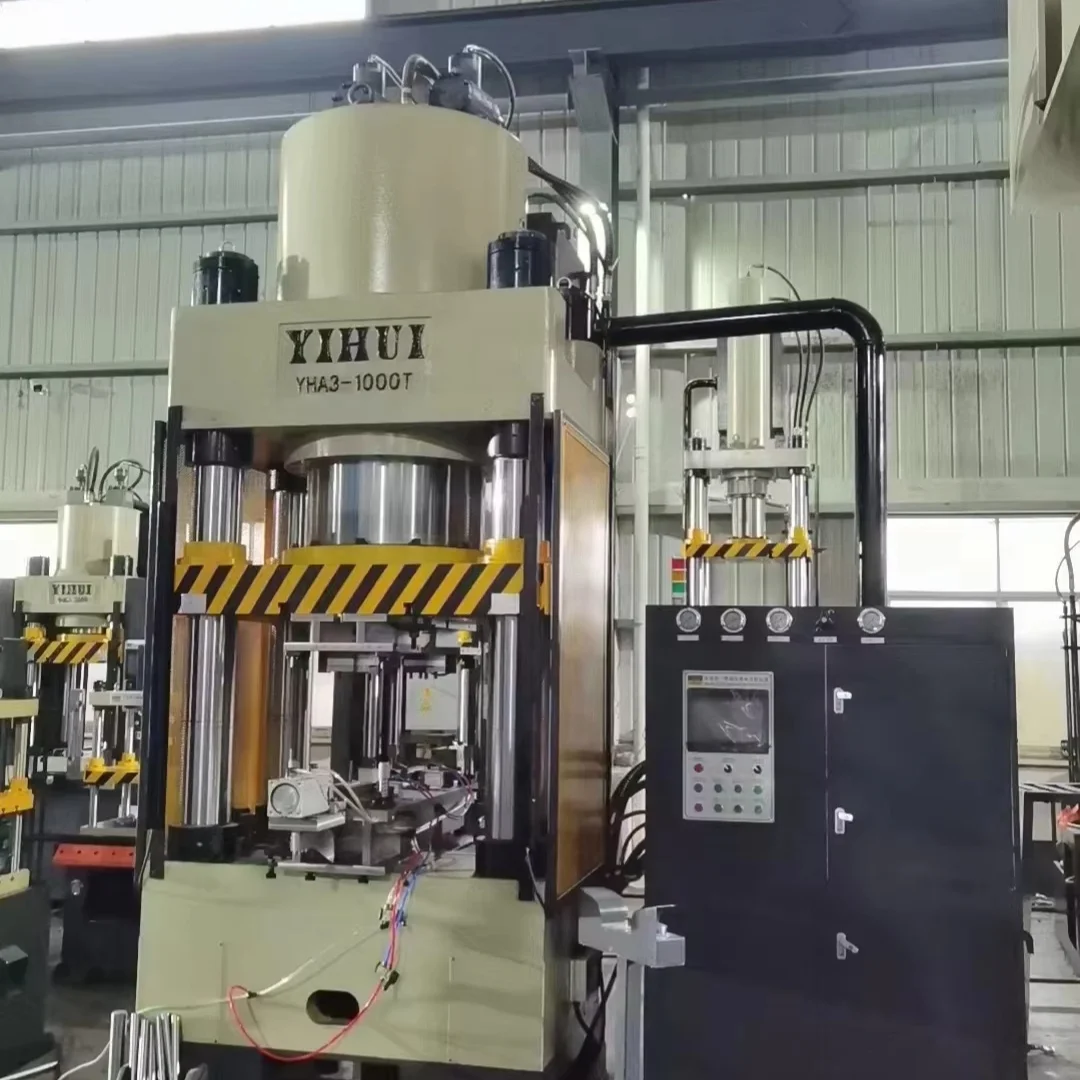

Relative Products

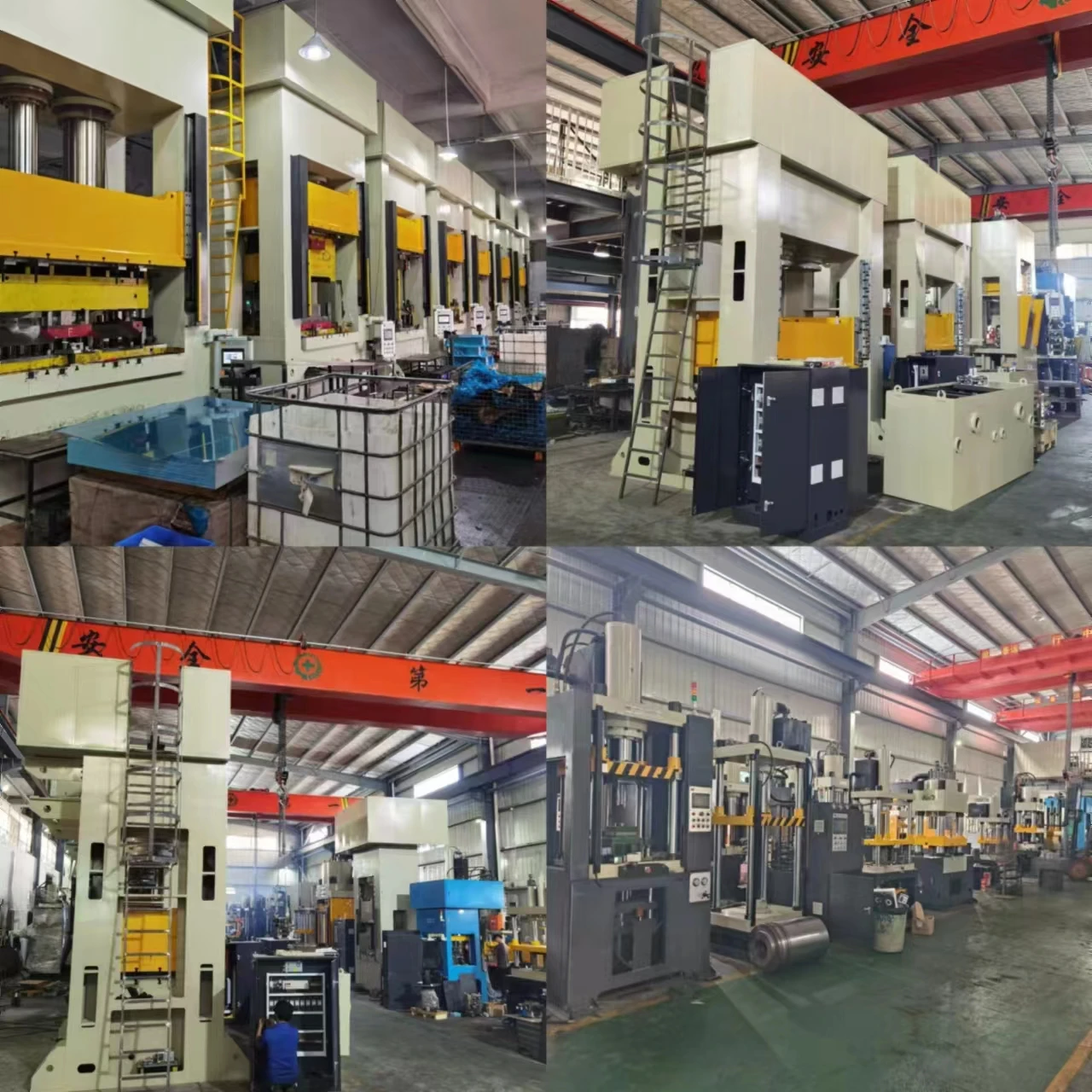

Company Profile
FAQ
Q:How about your machine quality?We are worry about the quality. A:YIHUI is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 40 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction. Q:Why Choose your company? A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use. Q:How to select your machine? A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.

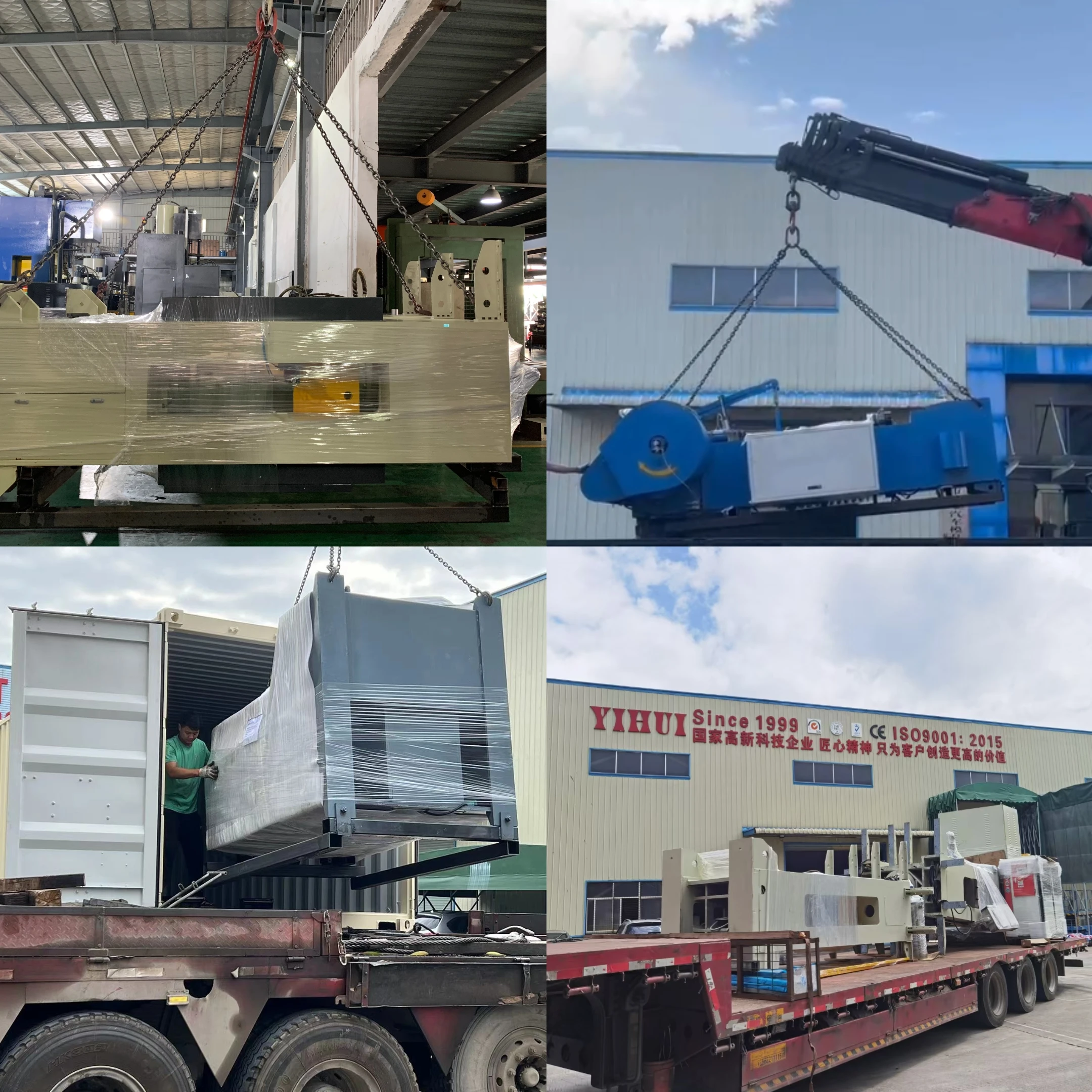

Package/delivery
